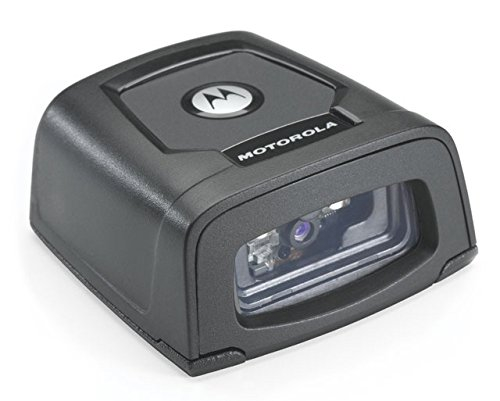

2D Barcode Scanner - Wall or Kiosk Mountable
EB-BARCODE-SCANNER-KM

2D Barcode Scanner

This barcode scanner is an affordable and easy-to-use scanner with point and shoot simplicity. No need to align bar code and scanner. It will read most common 1D and 2D bar codes right out of the box - Just plug in and go. Use it for license or ID scanning, as well as to read employee badges. This version mounts directly to the kiosk or to a wall. For a scanner that sits on a desktop or other flat surface, see our Desktop 2D Barcode Scanner.

→ Tip: Not sure what you need? View our breakdown comparison of ID & Passport Scanning Options.

Product Overview

Quick Collection Straight from ID Card

Versatile & Intuitive

This versatile and intuitive tool will scan basically any bar code on any medium, including IDs and licenses, paper, mobile phones, and computer displays. Scan 1D, 2D, and PDF417 bar codes with no need for training or complicated setup processes. Just plug in and go!

Durable & Lightweight Barcode Scanner

Compact, Lightweight & Durable

Our fixed mount barcode scanner has a sleek and compact design that is both light-weight and durable. It will fit in the most space-constrained spaces and can be mounted directly onto a check-in kiosk or onto the wall. It was created to withstand multiple 30 in./176 cm drops to concrete.

Automatic & Easy-to-Use

Automatic & Easy-to-Use

Autofill visitor sign-in forms and other items by capturing the information you specify from driver’s licenses and other types of IDs. Thanks to omnidirectional scanning, aligning bar code and scanner is not necessary, making this scanner very easy-to-use.

High-Performance Scanning

High-Performance Scanning

In addition to offering the largest working range possible on the largest variety of bar codes, this scanner is also made to assist in productivity: There is no need to pause in between scans, as the scanner can scan as quickly as you need it to.

Specifications

Physical Characteristics
Dimensions: 1.15 in. H x 2.3 in. L x 2.44 in. W (2.92 cm H x 5.84 cm L x 6.2 cm W)
Weight: 3.9 oz./111 g
Power: Maximum: 5 VDC +/- 10% @ 450 mA
Scanning: 5 ± 10% VDC @ 230ma average
Color: Black

Performance Characteristics
Sensor Resolution: 752 (H) x 480 (V) gray scale
Imager Field of View: DS457 SR and DL: 39.6° horizontal, 25.7° vertical DS457 HD and DP: 38.4° horizontal, 24.9° vertical
Aiming Element: 655 ± 10 nm (VLD)
Illumination Element: 625 ± 5 nm (LED)
Minimum Print Contrast Minimum: 25% absolute dark/light reflectance

Regulatory:
Electrical Safety: ETL, VDE, CETL, EN60950, Ctick, VCCI
Laser Classification: Intended for use in CDRH Class II/ IEC 825 Class I devices
EMI/RFI: FCC Part 15 Class B, ICES-003 Class B, CISPR22 Class B
Environmental: RoHS compliant

Symbology Decode Capability
1D: All major 1D bar codes
2D: PDF417, DataMatrix, QR Code, Aztec, Composite Codes and MaxiCode
Postal: US Postnet, US Planet, UK Postal, Australian Postal, Japan Postal

User Environment:
Operating Temperature: -4° to 122° F /-20° to 50° C* (Laser aimer disabled above 113° F /45° C)
Storage Temperature: -40° to 158° F /-40° to 70° C
Humidity: Operating - 95% RH, non-condensing at 50°C; Storage - 85% RH, non-condensing at 70°C
Sealing: IP54
Drop Specification: Withstands multiple 30 in./176 cm drops to concrete
Programmable Parameters: Power mode, trigger mode, beeper tone, session time, focus control, camera control, image control, advanced data formatting, document capture, signature capture
Image File Formats: BMP, TIFF, JPG

Interfaces:
Interfaces Supported: 9-pin male D-sub - USB (full speed ) and TTL level RS232 with RTS and CTS
