12in rugged Muster Tablet

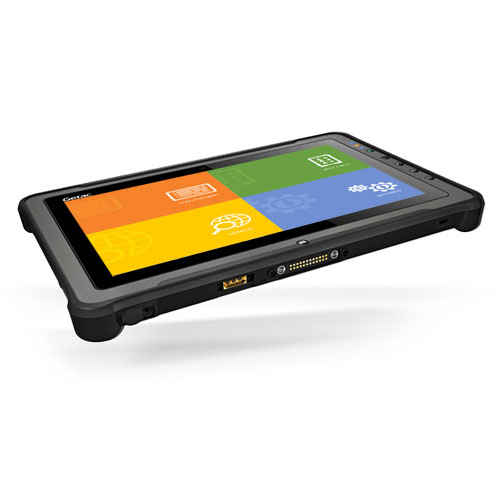

12" Rugged Muster Tablet

Rugged tablet designed to handle the toughest environments. Two hot-swappable batteries, maximum speed and security, and Ethernet ports built right into the tablet. Large sunlight-readable display with advanced touchscreen technology. Use with Savance's EIOBoard Emergency Mustering solution for up-to-the-minute emergency preparedness.

Product Overview

Elegant and Durable Tablet Kiosk

Built for Rugged & Harsh Environments

Designed to take some abuse, this muster tablet is built to handle the toughest of environments. The manufacturer stands by this by including a bumper-to-bumper 3-year warranty.

Touch Screen Kiosk

Built-In Ethernet

Ethernet ports built right into the tablet and the dock allowing the unit to be hard-wired for network reliability for critical, continuous operation.

EIOBoard and Windows 8

Large 12" Touch Screen Display

Sunlight-readable 12” touch screen display is crisp and clear, making it easier to use in any conditions. Using LumiBond 2.0 touchscreen technology, the display glass bonds with the touch panel and LCD for a single pane that's both more durable and more readable.

Energy Efficient Tablet

Independently Tested & Certified

The Rugged Muster Tablet is rugged all the way through, and engineered to protect the computer against drops, shocks, spills, vibration, dust, liquid, and more. It has been independently tested and certified to MIL-STD-810G, IP65 and MIL-STD-461G standards.

EIOBoard and Windows 8

Dual Hot-Swappable Battery

For longer battery life, the Rugged Muster Tablet was built with two removable batteries rather than just one, allowing you to remove one of the two rechargeable batteries and replace it with a fresh one without ever shutting down.

Energy Efficient Tablet

Optional Pelican Case Solution

To stand up to any environment, a Power Over Ethernet (PoE) quick-disconnect orange pelican case embodies the tablet and badge reader allowing it to be conveniently mounted and visible, yet easily portable. An optional quick-release aluminum wall-mount allows even more flexibility.

EIOBoard and Windows 8

Optional Wall-Mount for Fixed Muster Points

A custom-designed heavy-duty wall-mount offers Power over Ethernet (PoE) for a single Ethernet wire to provide both power and network in order to create a rugged muster point with long battery life.



Optional Dock

Rugged dock offers hard-wired Ethernet, constant charging, and quick-release.

Specifications

Ruggedness:
  • MIL-STD 810G and IP65 certified
  • MIL-STD 461F ready (with adapter, sold separately)
  • Optional ANSI/ISA 12.12.01
  • Vibration- & drop-resistant
Operating System:Windows® 10 Pro
CPU Support:
  • Intel® Core i7-7600U vProTM 2.8GHz processor with Turbo Boost Technology up to 3.9GHz; 4MB Intel Smart Cache
  • Intel® Core i7-7500U 2.7GHz processor with Turbo Boost Technology up to 3.5GHz; 4MB Intel Smart Cache
  • Intel® Core i5-7300U 2.6GHz processor with Turbo Boost Technology up to 3.5GHz; 3MB Intel Smart Cache
  • Intel® Core i5-7200U 2.5GHz processor with Turbo Boost Technology up to 3.1GHz; 3MB Intel Smart Cache
Memory:4GB DDR4 expandable to 16GB3
Storage:Solid State OPAL 2.0 128GB / 256GB / 512GB
VGA Controller:Intel HD Graphics 620
Display:
  • 11.6” IPS HD (1366x768) 800 NITs
  • LumiBond® 2.0 sunlight readable display with multi-touch technology
  • Optional digitizer
Expansion Slot Options:
  • Optional 1D/2D imager barcode reader; or
  • RS232 Port; or
  • 10/100/1000 base-T Ethernet; or
  • MicroSD slot; or
  • USB 2.0 port; or
  • RS232 Port + 10/100/1000 base-T Ethernet
Add-On Modules:Optional magnetic stripe card reader
Webcam:
  • Optional FHD webcam x 1; or
  • Optional IR webcam x 1
  • Optional 8MP auto focus camera
Security:
  • Intel vProTM Technology (per CPU options)
  • TPM 2.0
  • Cable lock slot
  • NIST BIOS compliant
  • Optional IR webcam
  • Optional LF/HF RFID reader
  • Optional fingerprint reader
  • Optional smart card reader
  • Optional Absolute™ DDS software
  • Optional HDMI-in + smart card reader
Communications:
  • Intel Dual Band Wireless-AC 8265, 802.11ac Bluetooth (v4.2)
  • Optional dedicated GPS
  • Optional 10/100/1000 base-T Ethernet (occupies expansion slot)
  • Optional 4G LTE multi-carrier mobile broadband with CA
Keyboard:Six tablet buttons: Power, Windows, Programmable, Camera Capture/Barcode Reader Trigger, Volume Up & Volume Down
Power:
  • AC Adapter (65W, 100-240VAC, 50/60Hz)
  • Hot swappable Dual Li-Ion battery (2160mAH) x 2 (up to 12 hours of battery life)
Dimensions & Weight:
  • 12.4” x 8.15” x 0.96” (314 x 207 x 24.5mm)
  • 3.08lbs (1.39kg)
Temperature:
  • Operating Temp: -5.8° F to 140° F / -21°C to 60°C
  • Storage Temp: -60°F to 160°F / -51.1°C to 71°C
  • Humidity: 95% RH, non-condensing
I/O Interface:
  • DC in x 1
  • USB 3.0 x 1
  • Docking port x 1
  • Headphone out/Mic-in Combo x 1
  • HDMI x 1
  • Optional HDMI-in x 1 (with smart card reader)
  • Optional RF antenna pass-through for GPS, WLAN and WWAN
Warranty:3 year manufacturer's bumper-to-bumper warranty
