ID Scanner

ID Scanner

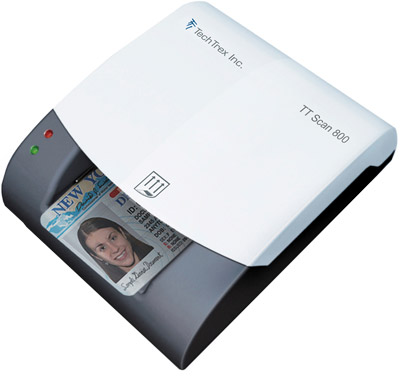

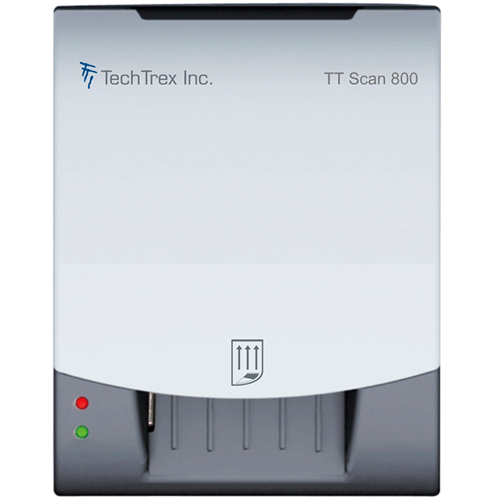

Our ID scanner allows for simultaneous scanning of both sides of a driver’s license or ID card, as well as reading of 2D barcode or magnetic card data. This is a very useful tool for e.g. our Visitor Management solution, as you will be able to quickly capture a dual-sided, high-quality image of the card.


Buy Now

Product Overview

Quick Collection Straight from ID Card

Quick Collection of Information

Collect information directly from an ID card or driver's license using our high-resolution ID card scanner. It retrieves a copy of both the front and back of the user’s card and can automatically fill in name, date of birth, and address during check-in.

High Resolution Scanner

High Quality Images

With our ID Scanner, you will get perfect image results every time. High-speed processing, 600dpi images, and forced align mechanism to prevent skewed images. Includes patented solution for jitter-free images.

Compact and User-Friendly ID Scanner

Compact & User-Friendly

This compact and cost-effective ID scanner has a user-friendly design with a high speed, plug-and-play USB 2.0 connection to your host devices. It can sit on a kiosk floor stand tray or a table top. Maintenance is made easy thanks to a clamshell opening mechanism.

Compact and User-Friendly ID Scanner

Magnetic Stripe & Barcode Reading

In addition to allowing you to perform quick, dual-sided scanning of a driver’s license or ID card, our 2D scanner also includes magnetic stripe capability for ISO 1, 2, 3 tracks, as well as 2D barcode imaging and decoding.


Media Standard:
Size: ISO 7811 credit card size

Scanning Side: Duplex
Sensor: Color CIS (Contact Image Sensor)
Scan Width: Max 54.8mm with forced align mechanism
Resolution: 200/300/400/600dpi
Color: 8-bit Grey, 1-bit B/W, 24-bit
True Color Image Formats: TIFF G4, JPEG, BMP
Processing Speed: 4 seconds

Magnetic Stripe Reader:
Card Standard: ISO 7811
Tracks: ISO - tracks 1,2,3, AAMVA format
Interface: Type: USB 2.0 High Speed (480Mbps

Physical Dimensions:
Size: 118(W)*150(D)*71(H)mm
Weight: 0.7kg

Adapter Input: AC 100~240V, 50~60 Hz, 1.75A
Adapter Output: DC 12V/1.0A

Operating: 00 C~320 C, 10~85%, Non condensing
Storage: -70 C~490 C, 10~98% RH, Non condensing
