70in Touch Screen Kiosk for Visitor Management & Staff Tracking
EB-AIO-70

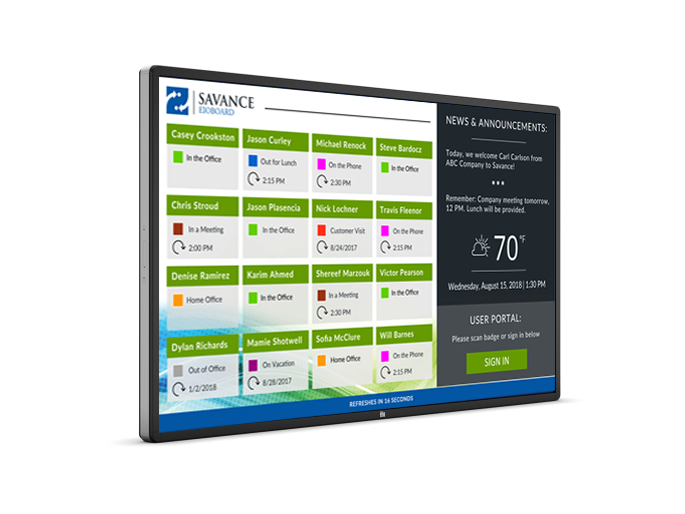

70" Touch Screen Kiosk

Sleek and slim 70" all-in-one touch screen computer that will add interactivity to any environment. This unit is often used as a custom-designed interactive Large Screen Display, showing the status of employees, resources, and more, while also allowing staff members to update their status, either manually or by adding a prox reader for badges.

Product Overview

Interactive Large Screen Display Board Interactive Large Screen Display Board

Interactive Large Screen Display Board

The 70" Touch Screen Kiosk is most frequently used as an interactive Large Screen Display, replacing a traditional physical in/out board. Simply click on a field to update statuses, add comments, and more.

Prox Reader Check-In & Status Updates Prox Reader Check-In & Status Updates

Quick Prox Reader
Check-In

With the addition of a proximity card reader, users can quickly check in or update their status by scanning a badge or a key fob. To take things a step further, check out our Access Control Integration options.

Electronic In/Out Board Security Features Electronic In/Out Board Security Features

More Secure than a Traditional In/Out Board

While some organizations just need a basic electronic in/out board with a simple click to access and update, others require more security. For increased security, opt to require a pin or an employee badge to make changes and send messages.

Vertically-mounted large screen in out status board Vertically-mounted large screen in out status board

Multiple Mounting Options

Our touch screen kiosks can be mounted horizontally or vertically depending on your needs and the layout of your board. Due to their size, the 32" to 70" touch screen kiosks are most frequently wall-mounted (recommended); however, floor stands are available as well.

Large Screen Interactive Kiosk Display Large Screen Interactive Kiosk Display

Support for Mixed Content

To make the most out of your large touch scren kiosk, our customizable Large Screen Display solution supports mixed content. Choose to include company news and announements, local weather, and more.

Unified look across multiple kiosk sizes Unified look across multiple kiosk sizes

Unified Look Across Units & Solutions

Often particularly important for larger corporations with multiple kiosks, our 32" to 70" touch screens provide a unified style across sizes. Savance also offers custom design to ensure Large Screen Display boards, Visitor Management kiosks, and staff check-in solutions all match your organization's unique branding and style.

Specifications

Touch Technology & Capacity: Infrared - 20 Touch
Touch Interfaces: USB
Diagonal Size: 69.5'' diagonal, Active matrix TFT LCD (LED)
Active Area: 60.6" x 34.0" / 1538.9mm x 865.6mm
Aspect Ratio: 16:9
Resolution:1920 x 1080 @ 60hz
Viewing Angle: Horizontal: ±88° or 176° total / Vertical: ±88° or 176° total
Number of Colors: 16.7 million
WiFi:Integrated
Brightness (Typical):
  • LCD Panel: 700 nits
  • IR: 630
Response Time-total (Typical):8 msec
Contrast Ratio:5000:1
Input Video Format:Analog VGA, HDCP-capable HDMI 1.3, Display port 1.1a.
Input Video Signal Connector:
  • Female DE-15 for Analog VGA
  • HDMI Type A receptacle Display part 1.1a Connector.
Input Video Frequency:
  • Horizontal: 31.5 - 73 KHz
  • Vertical: 47 - 63 Hz
Audio Input Connector:3.5 mm TRS jack
Audio Input Signal Range: 1Vrms max stereo signal (standard PC line out)
Headphone Output Connector: 3.5 mm TRS jack
Speakers:Internal 4x5 W stereo speakers
Power Supply:AC internal
Input Connector:IEC 60320 C14
Input Voltage:100 - 240 VAC 50/60Hz
Maximum Operating Time: 24 hours/day
Dimensions:63" x 3.7" x 36.4" / 1600mm x 94mm x 925mm
Weight:
  • Monitor Only: 149.5 lbs / 67.8 kg
  • Monitor with Computer Module: 154.35 lbs / 70 kg
Operating Temperature:0°C to 40°C / 32°F to 104°F
Storage Temperature:-20°C to 50°C / -4°F to 122°F
Humidity:
  • Operating: 20% to 80%
  • Storage: 10% to 95%
Mounting Options:VESA 4-hole mount per MIS-F, 600, 600, 8mm
Sealability:Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF:50,000 hours demonstrated
Warranty:3-year (with 1 or 2-year extended warranty available)
Regulatory approvals and declarations
  • Without RFID: UL, cUL , FCC Class A, CE Class A, VCCI Class A, IC, CCC, China RoHS, CB, RCM Class A, EAC, CoC, KC, BSMI, e-standby
  • With RFID: UL, FCC Class A, CE Class A
What's in the Box? 7001LT, OSD Remote, QIG, JP Class A Kiosk Info, User Manuals/Driver CD, HDMI cable (A to A plug), VGA + RS232 Y-Cable, VGA Cable, USB cable (A to B plug), power cable, NA plug, EU/KR plug UK plug, AR plug, CH plug, JP plug (3-pin to 2-pin adapter), Windows 10
